Coil Dryer

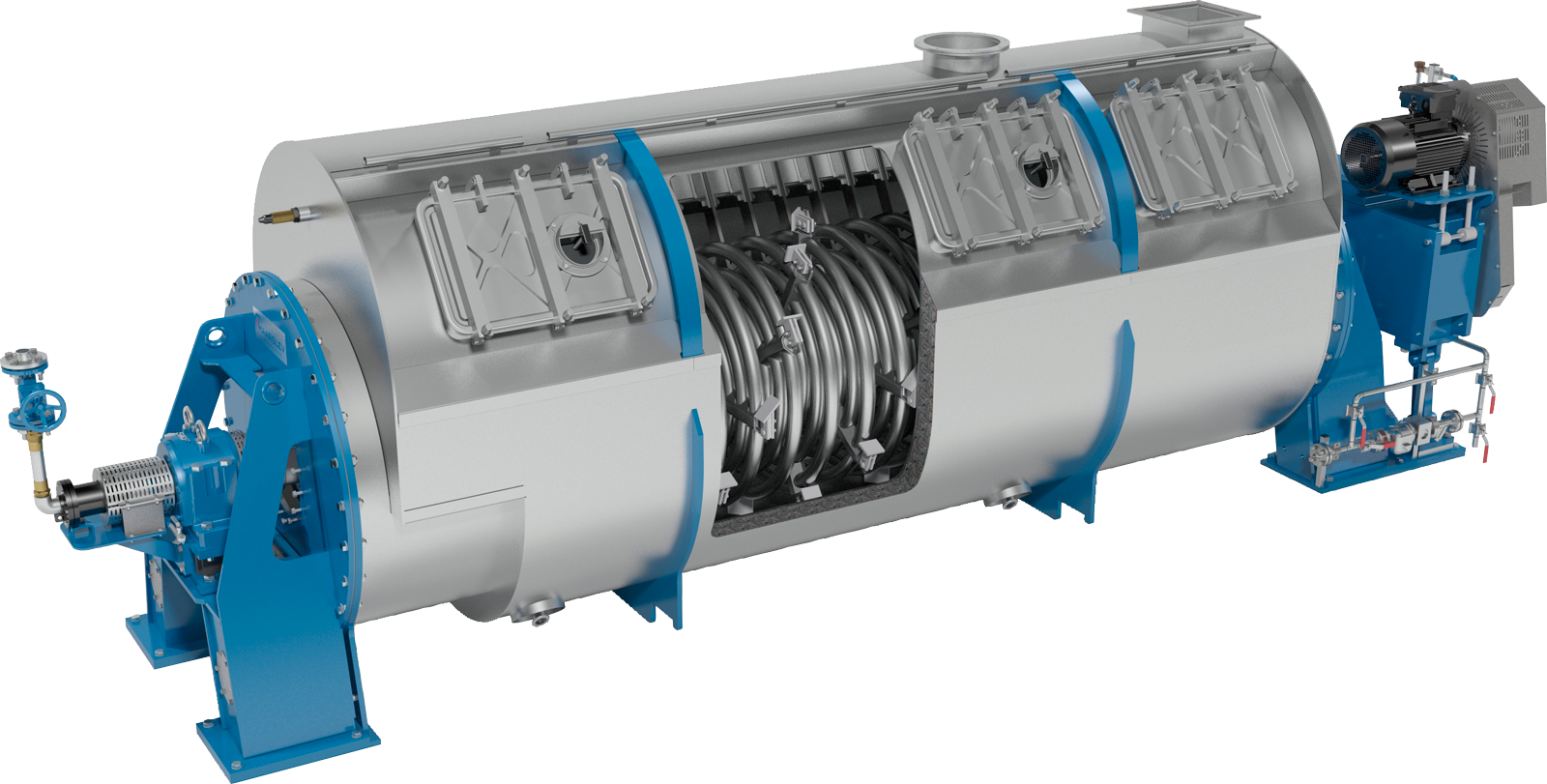

The Haarslev Coil Dryer provides continuous drying for free-flowing, semi-dry, low-fat materials that include fish meal, blood and feathers. The use of steam-heated rotating coils inside the same housing as disc dryers provides gentle, efficient heat transfer with less weight and a consistent retention time. The result is a stable, high-quality meal product with simple control and low operating costs.
Main uses
- 01
Fish meal drying after defatting
- 02
Blood meal drying operations
- 03
Feather rendering drying lines
- 04
Free-flowing low-fat material drying
Value at a glanceBuilt for
Built for
performance
- 01Ideal for ensuring efficient, continuous drying performance with free-flowing, low-fat inputs such as fish meal, blood meal and feathers, typically after mechanical dewatering.
- 02Rotating steam-heated coils inside a disc-dryer-style housing provide high heat transfer efficiency and a well-regulated product flow for consistent retention time.
- 03Paddles mounted on the coils carefully transport material through the dryer, maintaining even movement and preventing buildup or stagnation zones.
- 04Available in multiple sizes with from 40–475 m² heating surface, giving plants the flexibility to match capacity needs for fish meal, feather and blood meal lines.
- 05Optional vacuum configuration helps protect product quality and supports lower-temperature drying for sensitive, high-value protein materials.
