Fat Filtrator

Fat Filtrator

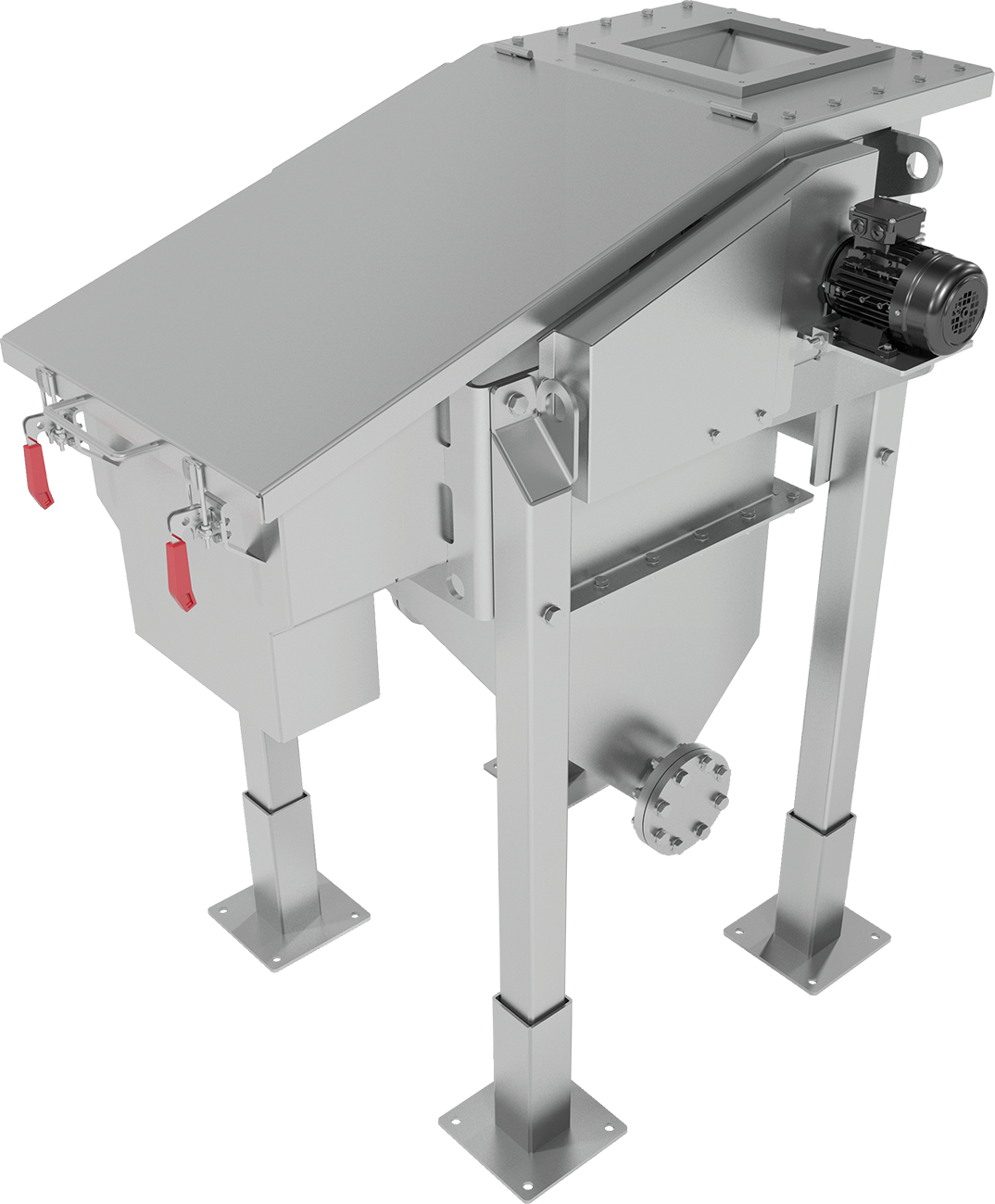

The Haarslev Fat Filtrator removes solids and fines from fatty sludge discharged by screw presses. Installed upstream of a decanter centrifuge, it reduces solids load, wear and maintenance, while improving fat flow consistency. A vibrating inclined screen separates fat from larger particles, which are conveyed to discharge. With tool-free screen changes, easy cleaning and compact installation, this boosts reliability in rendering lines of all sizes.

Get in touch

Main uses

  • 01

    Fatty sludge from screw presses

  • 02

    Rendering plant fat flows

  • 03

    Upstream of decanter centrifuges

  • 04

    Flows with varying solids content

Value at a glance

Built for
performance

  • 01
    Inclined vibrating screen with 0.7–1.0 mm mesh removes solids while allowing fat to pass through, improving overall separation performance.
  • 02
    Angled design and vibration automatically transport the retained solids to the outlet, helping maintain stable operation.
  • 03
    Compact layout fits easily into small spaces and integrates upstream of decanter centrifuges in both new and existing rendering lines.
  • 04
    Top lid allows quick inspection and cleaning, making sanitation simple and reducing downtime. (Page 3 diagram)
  • 05
    Screening area of 450 × 700 mm and capacity of up to 2,000 kg/hour suit a wide range of rendering plant configurations. (Technical table, p.3)
