Screw Conveyor

Screw Conveyor

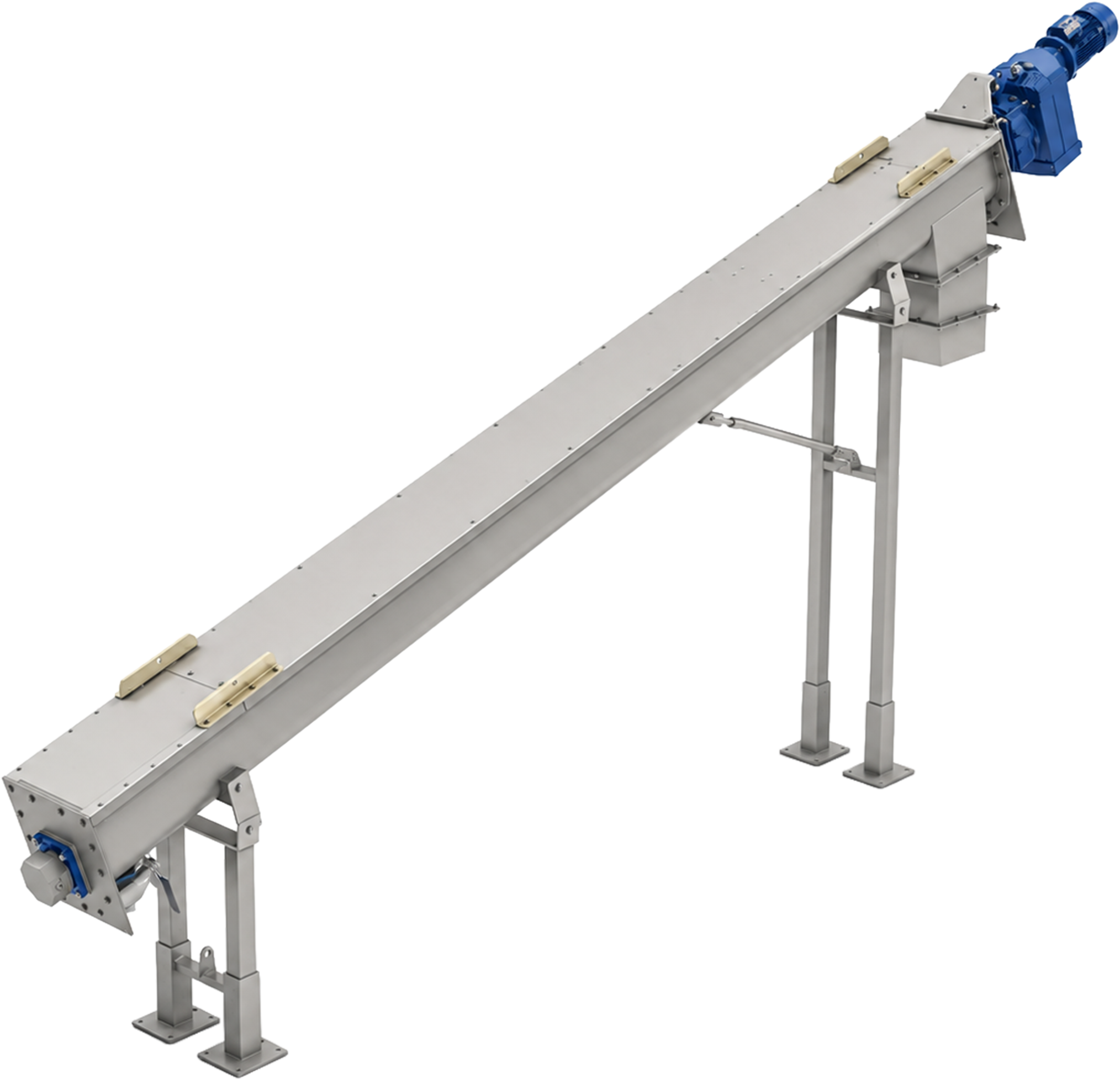

The Haarslev Screw Conveyor provides reliable, continuous transport of wet or dry materials between process steps, even across height differences of up to 30°. Available in universal or specil hygienic configurations, it ensures stable flow, eliminates bottlenecks and supports high processing throughput. Units are available in stainless steel, mild steel or combinations, with five standard screw diameters and optional easy-clean or fully hygienic configurations for edible or sensitive raw materials.

Get in touch

Main uses

  • 01

    Wet or dry rendering

  • 02

    Slaughterhouse material handling

  • 03

    Pet food processing lines

  • 04

    Fish and feather processing

Value at a glance

Built for
performance

  • 01
    Universal version transports carcasses, raw feathers, bones and waste food, with mild-steel screw rotor supported on wear plate. (Page 3 diagram)
  • 02
    Hygienic version features stainless-steel contact surfaces, self-supporting screw rotor and easy-open covers. (Page 3 diagram)
  • 03
    Available with five standard diameters – 230, 300, 400, 500 and 600 mm – to deal with a wide range of capacities. (Page 2)
  • 04
    Capable of operating with inclines up to 30°, enabling flexible layouts and making it easy to bridge height differences. (Page 2)
  • 05
    Shaft-mounted gearbox with IE3 motor and proximity-sensor overflow cover ensure safe, efficient operation. (Page 3 diagram)
