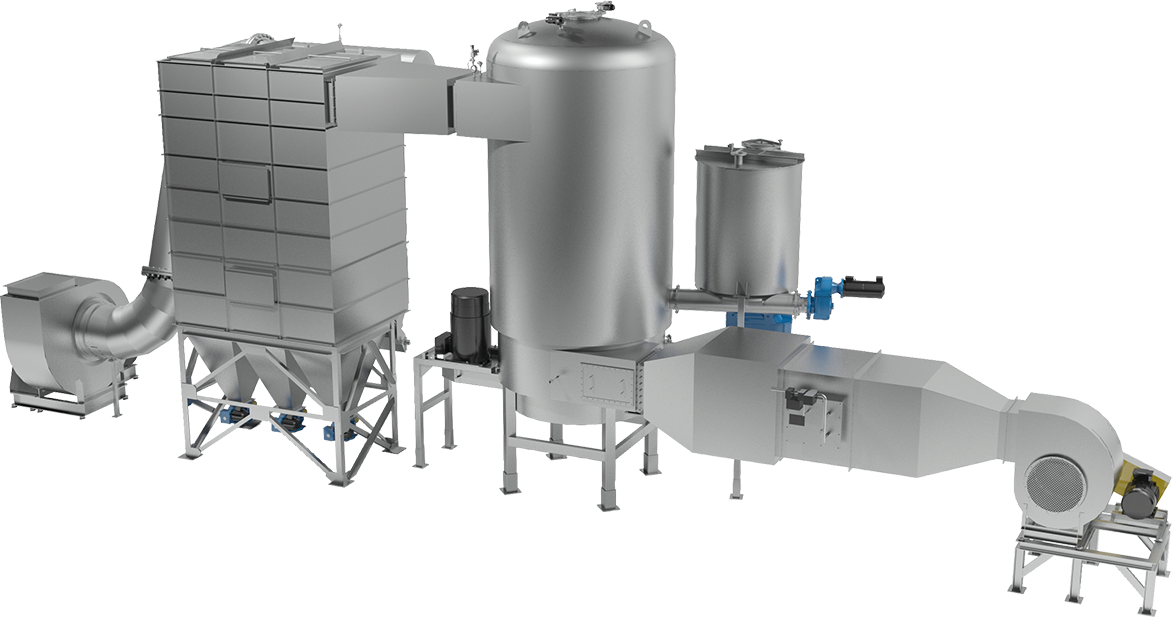

Spin Flash Dryer System
The Haarslev Spin Flash Dryer System rapidly mills and dries coagulated animal blood to protect high-value protein chains. By milling before drying, the system maximises thermal transfer between the product and 220°C air, flashing off moisture within one second. This ensures gentle handling, high digestibility and consistent particle size. Fully automated and energy-efficient, this Haarslev system integrates milling, drying, dust removal and continuous discharge into a compact, low-maintenance solution for blood meal production.
Main uses
- 01
Independent renderers
- 02
Slaughterhouses with rendering lines
- 03
Blood-processing facilities
- 04
Decanter-centrifuged coagulated blood
Value at a glanceBuilt for
Built for
performance
- 01Fast-revolving mill provides maximum contact between product and hot air, ensuring rapid moisture flash-off. (Process diagram, page 3)
- 02Mixing chamber transfers heat uniformly before material enters the drying zone, ensuring homogenous output. (Page 3)
- 03Adjustable hole plate allows targeting specific moisture levels in the final meal. (Page 3)
- 04Bag filter with automatic cleaning ensures dust removal and clean, safe operation. (Page 3)
- 05Integrated rotary valve enables continuous discharge of dried blood meal. (Page 3)
