Twin-Screw Press

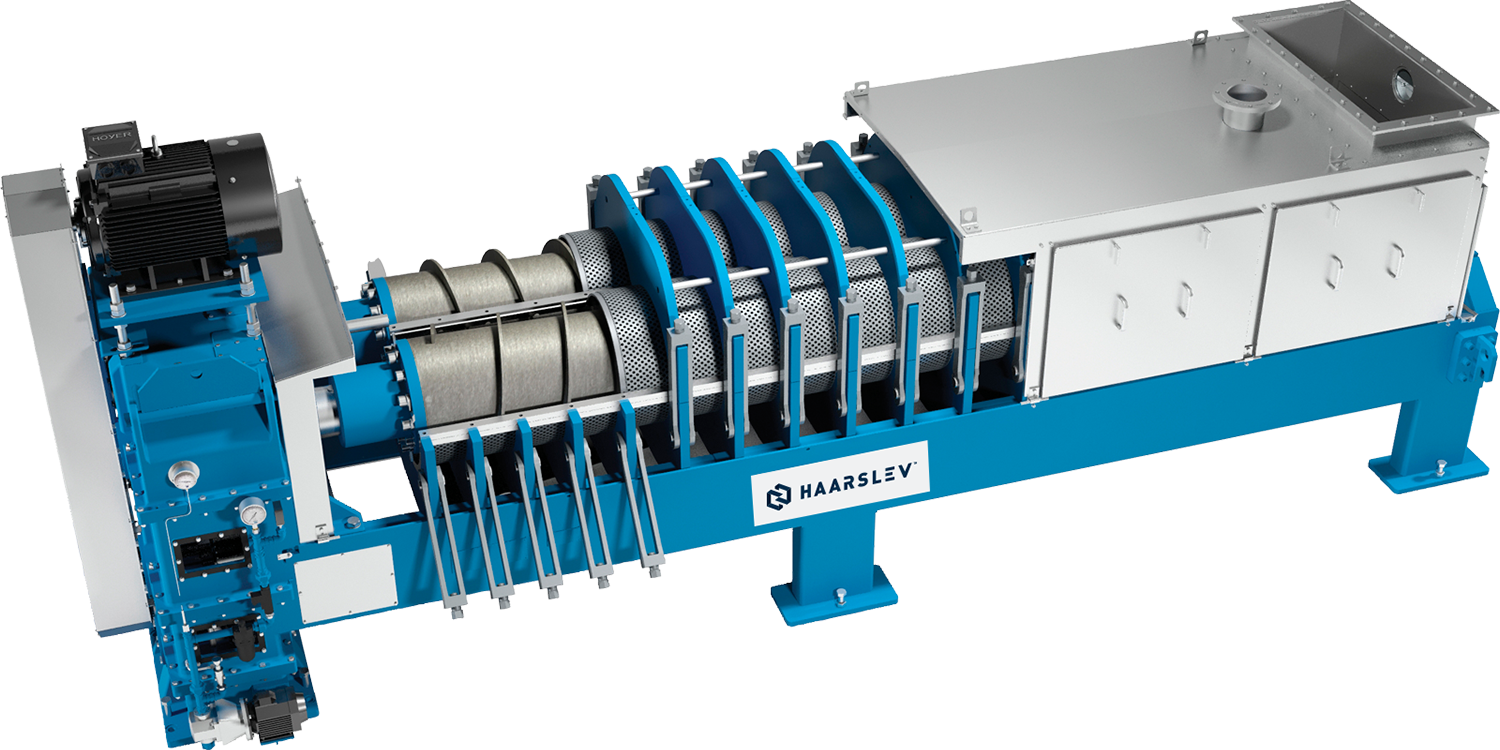

The Haarslev Twin-Screw Press extracts liquid from cooked fish or meat in wet rendering. Two intermeshing counter-rotating screws compress the material inside a slotted strainer cage, achieving high liquid removal with minimal slip. Bi-conical or cylindrical screw designs provide flexibility for different raw materials, with low-speed operation (≈3 rpm) ensuring long service life. The press produces a consistent, low-moisture cake that improves downstream efficiency and reduces overall energy consumption.
Main uses
- 01
Cooked fish/meat wet rendering
- 02
First stage before decanter centrifuge
- 03
Soft-fish dewatering (bi-conical)
- 04
High-capacity feather plants
Built for
performance
- 01Two intermeshing screws rotate in opposite directions to prevent material rotation and ensure efficient compression. (Page 3 diagram)
- 02Strainer cage featuring slotted stainless-steel plates with varying hole sizes improves drainage from inlet to outlet. (Page 3 diagram)
- 03Stainless-steel inspection doors along both sides provide easy access for cleaning and maintenance. (Page 3 diagram)
- 04Special twin-output reduction gear ensures long-life power transmission for low-speed operation. (Page 3 diagram)
- 05Available in multiple models from 2.5–60 tons/hour capacity with installed power from 7.5–132 kW. (Technical table, p.3)
Press performance control
CORE-TSP stabilises screw speed, pressure and torque to ensure consistent cake dryness under fluctuating load. It protects the drivetrain, prevents blockages, optimises energy use and provides real-time insight into press performance. Predictive alerts help plan maintenance and extend component life.
